SNS 4HV series high quality pneumatic hand switching control rotary valve
Product Description
■Feature :
We strive to be perfect in every detail.
Strict selection of each part,including the material and other spare parts.
Fine processing of thread and good sealing performance fulfill high quality
of the hand valve.
Note :
NPT thread can be customized.
| Model | 4HV2**-06 | 4HV2**-08 | 4HV3**-08 | 4HV3**-10 | 4HV4**-15 | 4HV4**-20 | |
| Working Media | Clean Air | ||||||
| Position | 4/2 Port, 4/3 Port | ||||||
| Port Size | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | G3/4 | |
| Effective Sectional Area(mm²) | 14(0.78) | 16(0.89) | 30(1.67) | 33(1.83) | 88(4.89) | 95(5.27) | |
| Working Pressure Range | 1.0MPa | ||||||
| Proof Pressure | 1.5MPa | ||||||
| Working Temperature Range | 0~60℃ | ||||||
| Operation Angle | 90℃ | ||||||
| Material | Body | Aluminum Alloy | |||||
| Seal | Nylon | ||||||

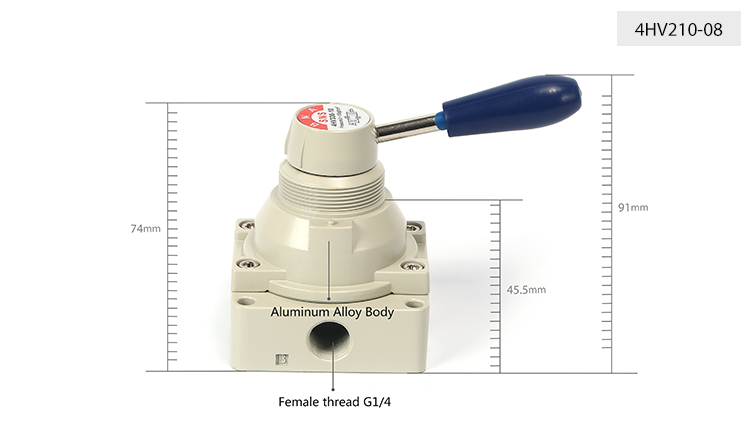

| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
| 4HV2-06 | 74 | 45 | 1.5 | G1/8 | 11.5 | M34X1.5 | 91 | 5.2 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 4HV2-08 | 74 | 45 | 1.5 | G1/4 | 11.5 | M34X1.5 | 91 | 5.2 | 62 | 49 | 40 | 3 | 49 | 62 | 120 |
| 4HV3-08 | 88 | 55 | 1.5 | G1/4 | 13 | M40X1.5 | 105 | 6.5 | 73.5 | 62 | 51 | 3 | 62 | 73.5 | 140 |
| 4HV3-10 | 88 | 55 | 1.5 | G3/8 | 13 | M40X1.5 | 105 | 6.5 | 73.5 | 62 | 51 | 3 | 62 | 73.5 | 140 |
| 4HV4-15 | 109 | 70.5 | 2 | G1/2 | 17.5 | M52X1.5 | 130 | 6.5 | 101.5 | 89 | 63.5 | 3 | 81 | 94.5 | 160 |
| 4HV4-20 | 109 | 70.5 | 2 | G3/4 | 17.5 | M52X1.5 | 130 | 6.5 | 101.5 | 89 | 63.5 | 3 | 81 | 94.5 | 160 |
